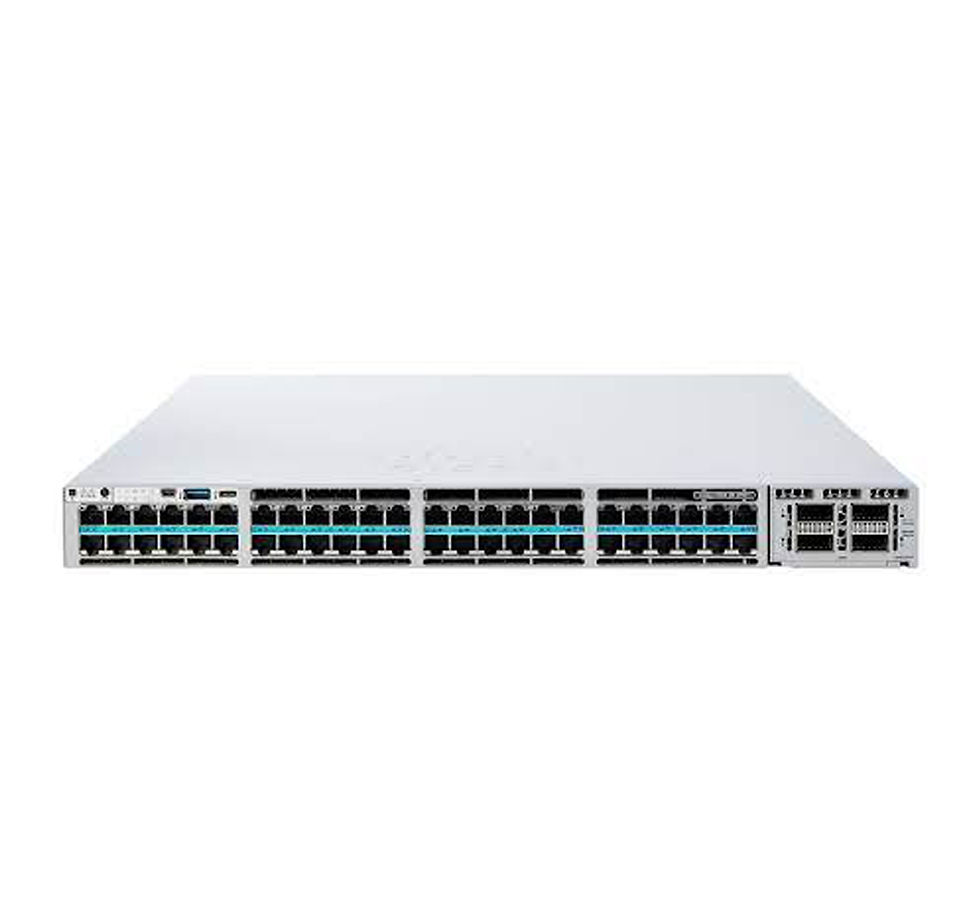

Full Part Number: C9300X-48HX-E
Manufacturer: Cisco Systems, Inc.
Overview
The Cisco C9300X-48HX-E is a high-performance, enterprise-class switch designed for the next-generation access layer in campus networks. As part of the Cisco Catalyst 9300X Series, this switch provides advanced features and scalability with 48 Multigigabit Ethernet (mGig) ports, allowing for a range of speeds from 100 Mbps to 10 Gbps on each port. It is ideal for supporting the increasing demands of high-density access, wireless connectivity, and modern applications. The switch comes with Cisco's Network Essentials software, offering robust security, automation, and analytics capabilities.
Key Features
48 Multigigabit Ethernet Ports: Supports multiple speeds (100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps) on each port, providing flexible connectivity options for a variety of network devices.
Advanced Security: Includes advanced security features like Secure Boot, MACsec encryption, TrustSec, and segmentation to protect against threats and unauthorized access.
High Performance: Offers high bandwidth and low latency, making it ideal for supporting bandwidth-intensive applications such as high-definition video streaming, large file transfers, and virtual desktop infrastructure (VDI).
Network Essentials License: Provides essential Layer 2 and Layer 3 networking capabilities, advanced security features, and network management tools, including basic automation and programmability.
Stackable Design: Supports Cisco StackWise technology, allowing up to 8 switches to be stacked together for simplified management and increased network resiliency.
Modular Uplink Options: Offers flexible uplink configurations with modular slots that support 10G, 25G, and 40G uplinks, providing future-proofing and scalability.
Energy Efficient: Complies with Energy Efficient Ethernet (EEE) standards and includes Cisco EnergyWise technology to reduce power consumption and operational costs.
Applications
Enterprise Campus Networks: Perfect for high-density campus networks requiring advanced security, scalability, and flexibility to support various applications and devices.
Wired and Wireless Convergence: Ideal for environments where wired and wireless networks need to converge seamlessly, supporting access points and other network devices with high power and data throughput needs.
Data-Intensive Applications: Suitable for applications that demand high bandwidth and low latency, such as video conferencing, multimedia content delivery, and data analytics.
Secure Network Environments: Excellent choice for environments that require enhanced security features to protect sensitive data and ensure compliance with security policies.
Specifications
Port Configuration: 48 x Multigigabit Ethernet Ports (100M/1G/2.5G/5G/10G)
Uplink Ports: Modular uplink options supporting 10G, 25G, and 40G
Switching Capacity: Up to 960 Gbps
Forwarding Rate: Up to 720 Mpps (million packets per second)
Stacking Bandwidth: Up to 480 Gbps (StackWise-1T technology)
Software License: Network Essentials
Security Features: Secure Boot, MACsec encryption, TrustSec, segmentation, access control lists (ACLs)
Power Supply: Dual redundant, modular power supplies (optional)
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Dimensions: 1.73 x 17.5 x 17.5 inches (H x W x D)
Why Choose Cisco C9300X-48HX-E?
The Cisco C9300X-48HX-E offers a powerful and flexible solution for modern enterprise networks. With its high-density multigigabit ports, advanced security features, and scalable architecture, it meets the needs of organizations looking to enhance network performance, security, and efficiency. Cisco’s reliable hardware and comprehensive software solutions make this switch an excellent choice for future-proofing your network infrastructure, ensuring you are ready for the increasing demands of today’s digital environment.
