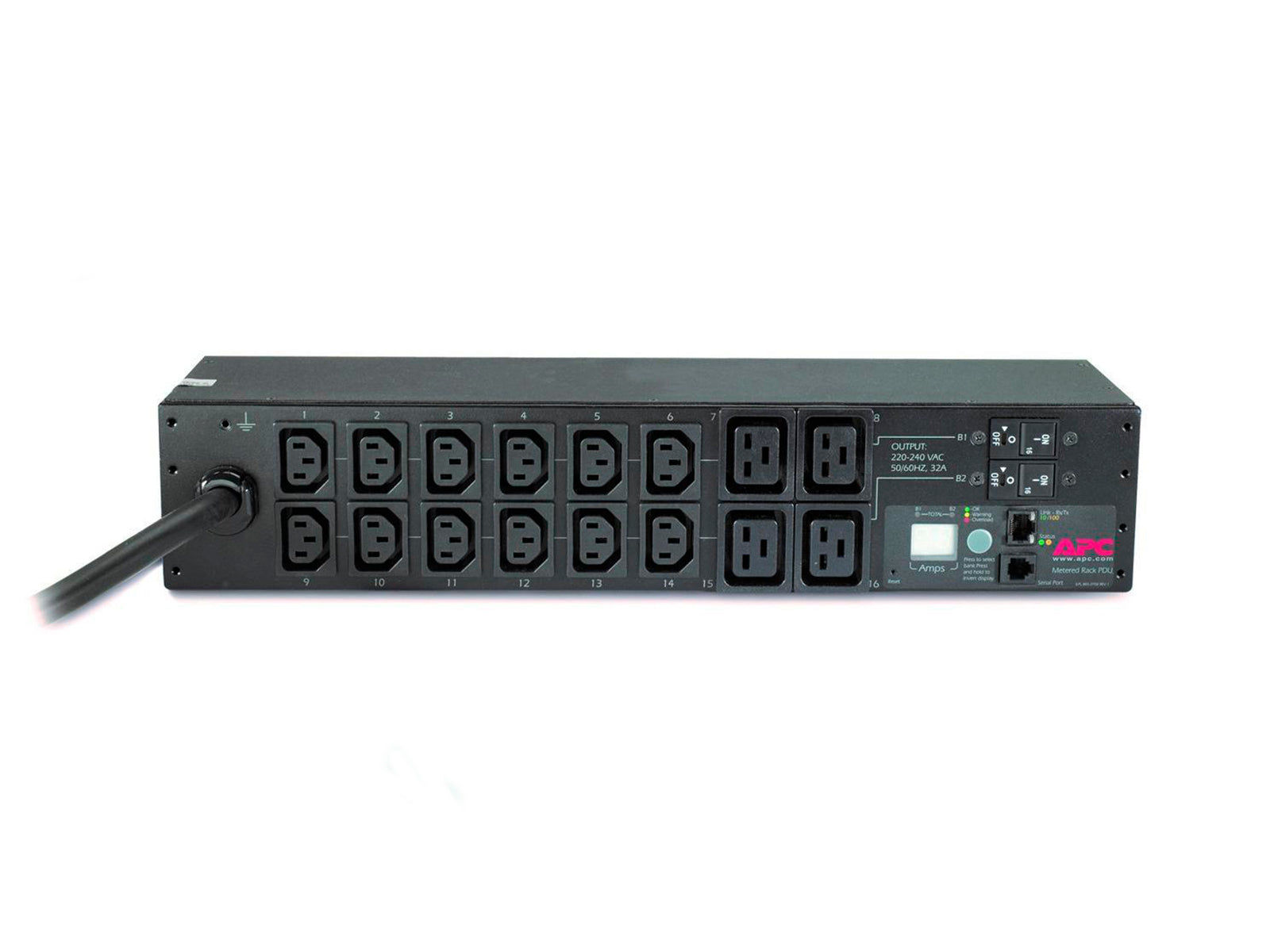

APC AP7922 APC Switched Rack 7.36kVA PDU AP7922 Power Distribution Units
The Switched Rack Power Distribution Units (PDUs) are sophisticated solutions for many power supply problems in current IT environments. These problems include the unauthorized use of outputs, system crashes, power surges, overloads and remote access to the outputs in the rack. The Switched Rack PDUs solve these problems by the possibility to control each output individually, to define delays when switching on and off, to monitor the power supply, to set alarm threshold values ​​and by the network management functions. Users can turn individual outputs on and off, restore power to failed systems, and prevent unauthorized access to the outputs. The current delays allow users to set the order, with which the equipment is switched on and off. By defining delay times, power surges that can lead to overloads are avoided. Monitoring power consumption at the rack level is a critical factor in avoiding downtime due to overloaded circuitry. The Switched Rack PDUs provide an overview of the total power consumption, which can be monitored locally via a digital display, i.e. remotely. In addition, various warnings are issued as soon as user-defined threshold values ​​are exceeded, which can lead to overloading of the circuits. (Currently only available on certain models. Please check the available features using the SKU). The switched PDUs can be accessed via the web.
Product description
APC Switched Rack PDU - Power Control Unit
Device type
Power Control Unit - Rack - ready for installation
Rack size
48.3 cm (19 ") - 2U
Weight
4.5 kg
Input voltage
AC 230 V
Output voltage
AC 230 V
Input connections
1 x power IEC 60309
Output connection points
16 x power IEC 60320 C13
network
Ethernet 10/100
Remote administration protocol
SNMP, Telnet, HTTP
System requirements
Microsoft Windows NT 4.0, Microsoft Windows 98/2000 / XP
Dimensions (width x depth x height)
44.5 cm x 11.4 cm x 8.9 cm
Developed for
P / N: AR3100, AR3150
