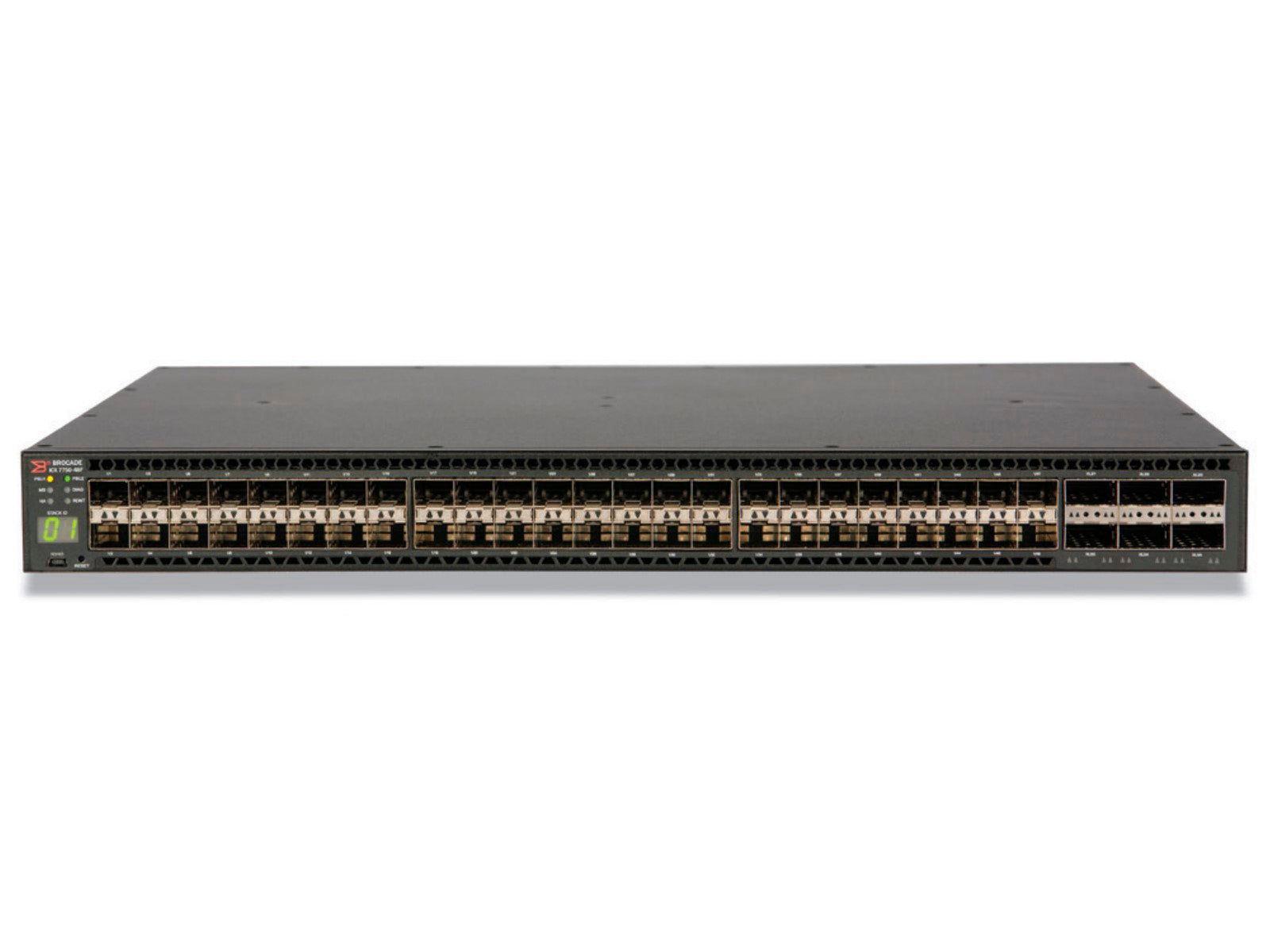

Brocade ICX7750-48F RUCKUS / BROCADE BROCADE ICX 7750 WITH 48
Product description
Brocade ICX 7750-48F - switch - 48 ports - managed - rack mountable
Device type
Switch - 48 connections - L3 - managed - stackable
Art
Rack mountable 1U
Subtype
10 Gigabit Ethernet
Ports
48 x 1 gigabit / 10 gigabit SFP + + 6 x 40 gigabit QSFP +
Power
Switching capacity: 1.92 Tbit / s ¦ Throughput: 1.44 Bpps ¦ Port-to-port latency: 550 ns
Capacity
Virtual interfaces (VLANs): 4095 ¦ ACL entries: 4000 ¦ Spanning Tree Protocol instances: 16 ¦ Rapid Spanning Tree Protocol instances: 254 ¦ IP hosts: 131072 ¦ IGMP groups: 8192 ¦ IPv4- Routes: 131072 ¦ IPv6 routes: 7168 ¦ Virtual Routing and Forwarding (VRF) entries: 64 ¦ QoS hardware queues per port: 8 ¦ Maximum aggregation groups: 128 ¦ IP hosts: 131072 ¦ Maximum frame size: 10220
Size of the MAC address table
294,912 entries
Jumbo frame support
Yes
Routing protocol
RIP-1, RIP-2, VRRP, static IP routing
Remote administration protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP, SSH-2, CLI
Features
Flow control, DHCP support, BOOTP support, RARP support, ARP support, VLAN support, port mirroring, weighted round robin (WRR) queue, MAC address filter, IPv6 support, SNTP support, DDos attack protection, Metro Ring Protocol (MRP) support, sFlow, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Virtual Switch Redundancy Protocol (VSRP) - Support, MRP-II support, Multiple Spanning Tree Protocol (MSTP) support, Support for Access Control List (ACL), Quality of Service (QoS), STP Root Guard, IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), port-based access control, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), STP PortFast,Strict Priority (SP), marked VLAN, IGMP proxy, Type of Service (ToS), 12.2 MB packet buffer
Product certifications
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX
Redundant power supply
Optional
Dimensions (width x depth x height)
44 cm x 40.64 cm x 4.36 cm
Weight
9.08 kg
System requirements
IBM AIX, SunSoft Solaris, HP-UX, Microsoft Windows NT
